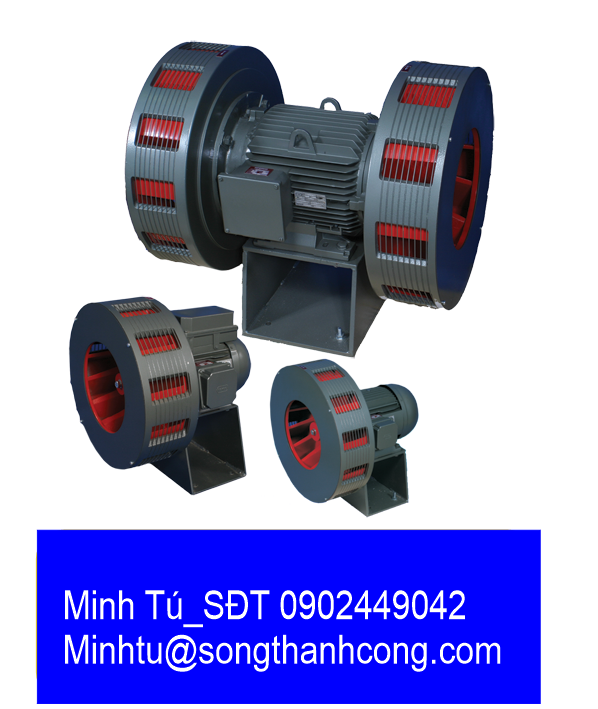

K-SML05/10/15 Motor Driven Sirens

The E2S range of motor driven sirens offer the traditional "air raid" type warning signal designed to give effective warning over wide areas. The powerful low frequency sound is ideal for covering long distances and is instantly recognisable.

The simple, rugged design is low maintenance and offers the lowest cost solution to disaster warning applications such as COMAH (SEVESO II) toxic gas alarms, flood and tsunami warning, security alert, civil defence, tornado and bad weather alert.

Part Codes

Version: Part code: SPL:
K-SML05 380V ac K-SML05AC380G 135dB(A) @ 1m
K-SML10 380V ac K-SML10AC380G 140dBA() @ 1m
K-SML15 380V ac K-SML15AC380G 145dB(A) @ 1m

Other voltages available on request.

K-SML05 features

A robust, rugged cast aluminium siren with a very powerful low frequency output. Ideally suited for use in factories, refineries, quarries, construction and industrial sites, as well as both underground and surface mining.

  • Maximum Output: 135 db (A) @ 1m
  • Tones: Continuous or Wail Tone (when supply is switched on/off)
  • Frequency: 560Hz
  • 1 Km effective range
  • Voltages: 400v 3 Phase
  • Motor Power: 2.2kW
  • Duty: Continuous
  • Enclosure Material: Cast Aluminium
  • Colour: Grey, other colours available
  • Operating Temperature: -20 to +40°C
  • Storage Temperature: -40 to +70°C
  • Relative Humidity: 90% at 20°C
  • Weight: 50Kg

K-SML10 features

Precision machined aluminium body with all weather enclosed, continuously rated motor. Ideally suited for use in factories, refineries, quarries, construction civil defence and industrial sites, as well as both underground and surface mining.

  • Maximum Output: 140 db (A) @ 1m
  • Tones: Continuous or Wail Tone (when supply is switched on/off)
  • Frequency: 560Hz
  • 1.5Km effective range
  • Voltages: 400V 3 Phase
  • Motor Power: 4kW
  • Duty: Continuous
  • Enclosure Material: Cast Aluminium
  • Colour: Grey, other colours available
  • Operating Temperature: -20 to +40°C
  • Storage Temperature: -40 to +70°C
  • Relative Humidity: 90% at 20°C
  • Weight: 68Kg

K-SML15 features

All weather enclosed motor is ideally suited for outdoor use. This siren would be used for audible warning at refineries, oil rigs, in the event of fires and open-cast mining operations. This precision machined unit produces a powerful dual low frequency sound that is ideal for long distance signalling.

  • Maximum Output: 145 db (A) @ 1m
  • Tones: Continuous or Wail Tone (when supply is switched on/off)
  • Frequency: 560Hz
  • 2.5Km effective range
  • Voltages: 400V 3 Phase
  • Motor Power: 7.5kW
  • Duty: Continuous
  • Enclosure Material: Cast Aluminium
  • Colour: Grey, other colours available
  • Operating Temperature: -20 to +40°C
  • Storage Temperature: -40 to +70°C
  • Relative Humidity: 90% at 20°C
  • Weight: 118Kg
